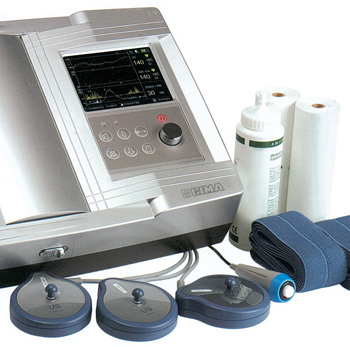

ΚΑΡΔΙΟΤΟΚΟΓΡΑΦΟΣ ΜΕ ΟΘΟΝΗ GIMA
Superior data display
? 320 x 240 color LCD viewer (4.3 inch)
? FHR and automatic fetal movement detection
? 12 hours of memory capacity
? recommended after week 30
Extreme data accuracy and access
? High-accuracy and wide detection area
? Easy on-screen scrolling function
? Endurable watertight probes, 1 MHz
Printout
? CTG analysis printing
? Both standard and A4 size paper usable
? Normal fax paper usable
? High speed printout (50 cm/min)
Other advantages
? Wireless central monitoring up to 8 beds (Option)
? PC compatible
? Internal battery lasting 2-hours (Option)
? Power adapter 100-240 V, 50-60 Hz
Technical Specifications
? Doppler:
– Pulsed Doppler
– Ultrasound frequency: 1.0 MHz
– Intensity: <10mW/cm2
- FHR range: 50-240 bpm (± 1 bpm)
? Fetal movement:
- Detection source: Ultrasound pulsed doppler
? UC:
- Frequency response: DC 0.5 Hz
- Reference (zero) control
- Measurement range: 0~99 units
? Printer:
- Thermal array type
- Print speed: 1, 2, 3 cm/min
- Paper feeding function
? Display:
- 7-segment LED (29520)
- 2 channels (HR, UC) (29520)
- 320 x 240 Colour LCD (29530-29531)
? Indicators:
- Heart rhythm with signal quality
- Alarm, printing on/off state
- AC power
? Set-up:
- Alarm upper/low limit value
- Record speed, paper grid, Fetal
- Movement On/Off, Time/Date, Print contrast, Auto print period
? Power:
- INPUT: AC 100-240V (50/60 Hz)
- OUTPUT: DC 18V, 2.5A
- CONSUMPTION: 80W
? Dimensions:
- 296(W)x 305.5(H) x 92.5(D)mm
- Approx 2.9kg (29520), 3.2kg (29530-29531)
? External link:
- RS-232C: Program Download
Standard accessories
? Doppler transducer (2 for Twins Foetal Monitor code 29531)
? Toco transducer
? Event marker
? Printer paper
? Gel
? Belts
? Manual
Description
Superior data display
? 320 x 240 color LCD viewer (4.3 inch)
? FHR and automatic fetal movement detection
? 12 hours of memory capacity
? recommended after week 30
Extreme data accuracy and access
? High-accuracy and wide detection area
? Easy on-screen scrolling function
? Endurable watertight probes, 1 MHz
Printout
? CTG analysis printing
? Both standard and A4 size paper usable
? Normal fax paper usable
? High speed printout (50 cm/min)
Other advantages
? Wireless central monitoring up to 8 beds (Option)
? PC compatible
? Internal battery lasting 2-hours (Option)
? Power adapter 100-240 V, 50-60 Hz
Technical Specifications
? Doppler:
– Pulsed Doppler
– Ultrasound frequency: 1.0 MHz
– Intensity: <10mW/cm2
- FHR range: 50-240 bpm (± 1 bpm)
? Fetal movement:
- Detection source: Ultrasound pulsed doppler
? UC:
- Frequency response: DC 0.5 Hz
- Reference (zero) control
- Measurement range: 0~99 units
? Printer:
- Thermal array type
- Print speed: 1, 2, 3 cm/min
- Paper feeding function
? Display:
- 7-segment LED (29520)
- 2 channels (HR, UC) (29520)
- 320 x 240 Colour LCD (29530-29531)
? Indicators:
- Heart rhythm with signal quality
- Alarm, printing on/off state
- AC power
? Set-up:
- Alarm upper/low limit value
- Record speed, paper grid, Fetal
- Movement On/Off, Time/Date, Print contrast, Auto print period
? Power:
- INPUT: AC 100-240V (50/60 Hz)
- OUTPUT: DC 18V, 2.5A
- CONSUMPTION: 80W
? Dimensions:
- 296(W)x 305.5(H) x 92.5(D)mm
- Approx 2.9kg (29520), 3.2kg (29530-29531)
? External link:
- RS-232C: Program Download
Standard accessories
? Doppler transducer (2 for Twins Foetal Monitor code 29531)
? Toco transducer
? Event marker
? Printer paper
? Gel
? Belts
? Manual
